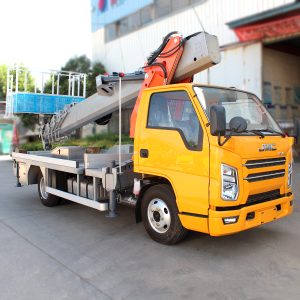

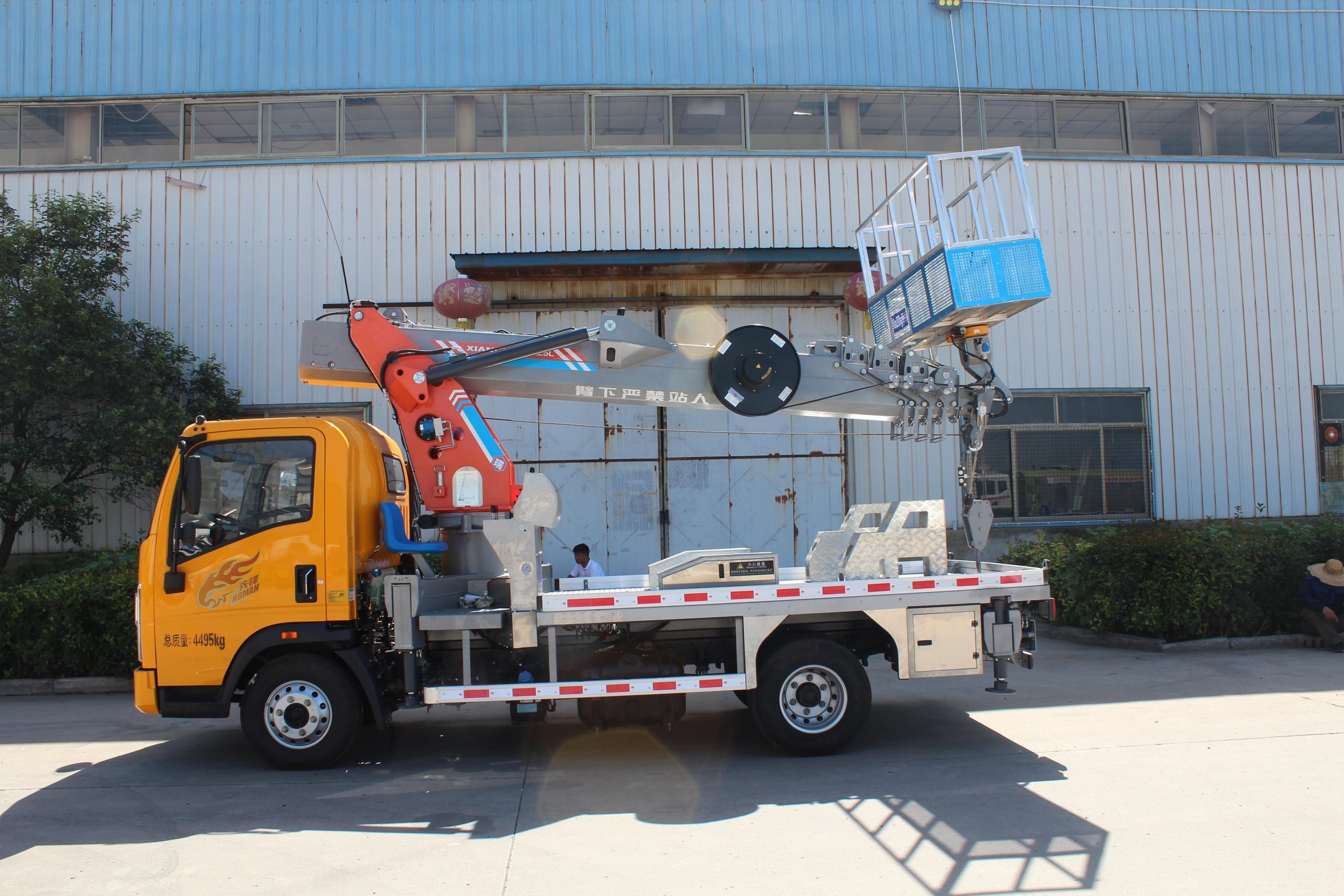

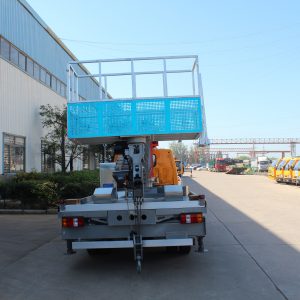

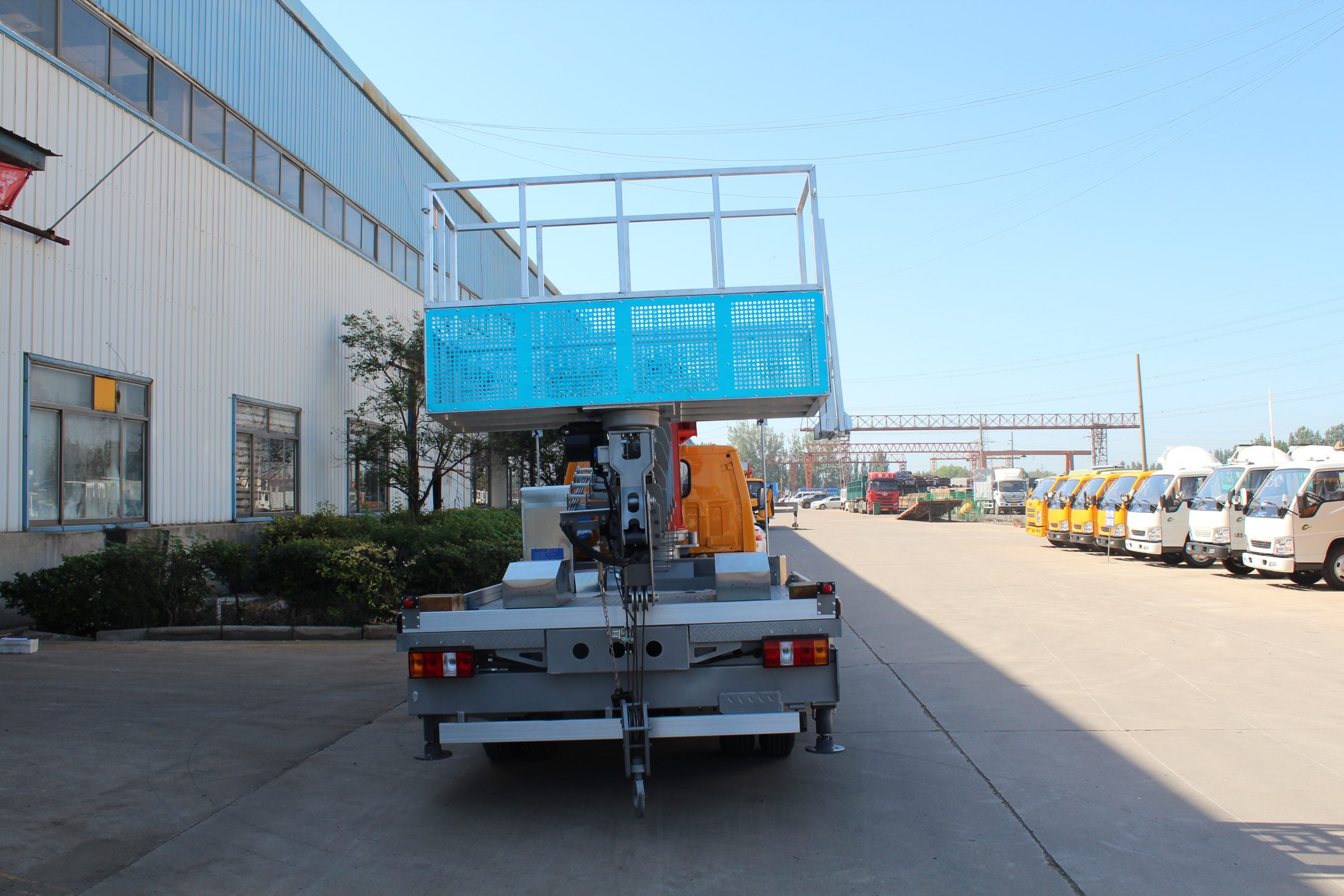

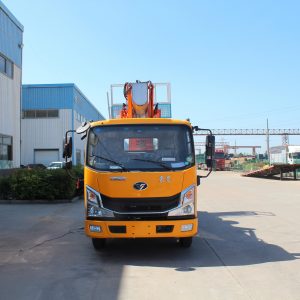

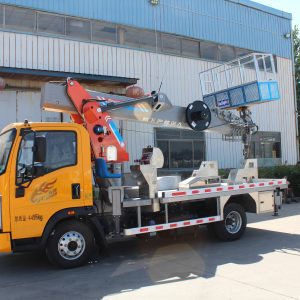

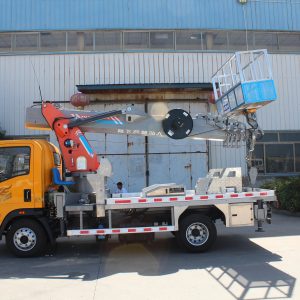

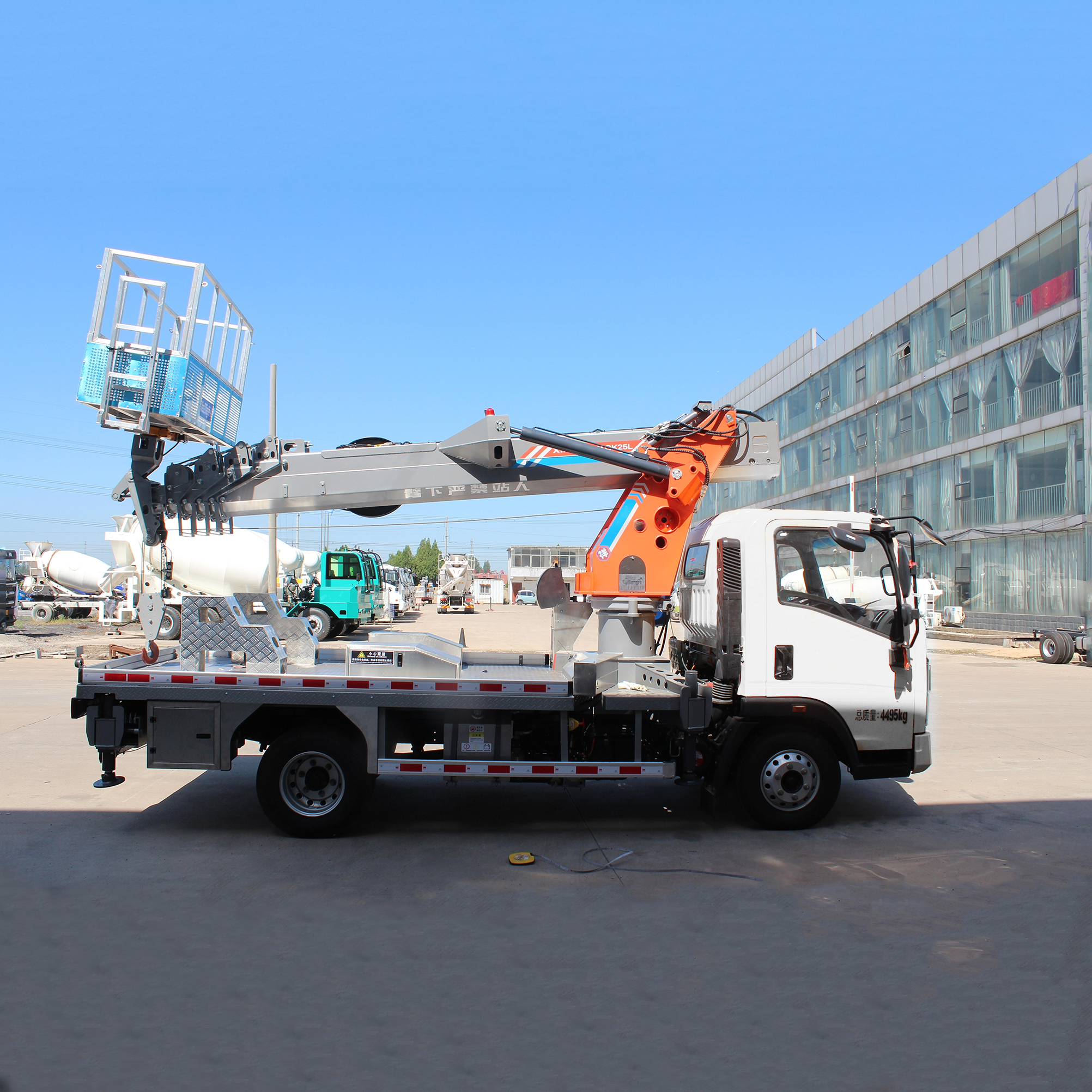

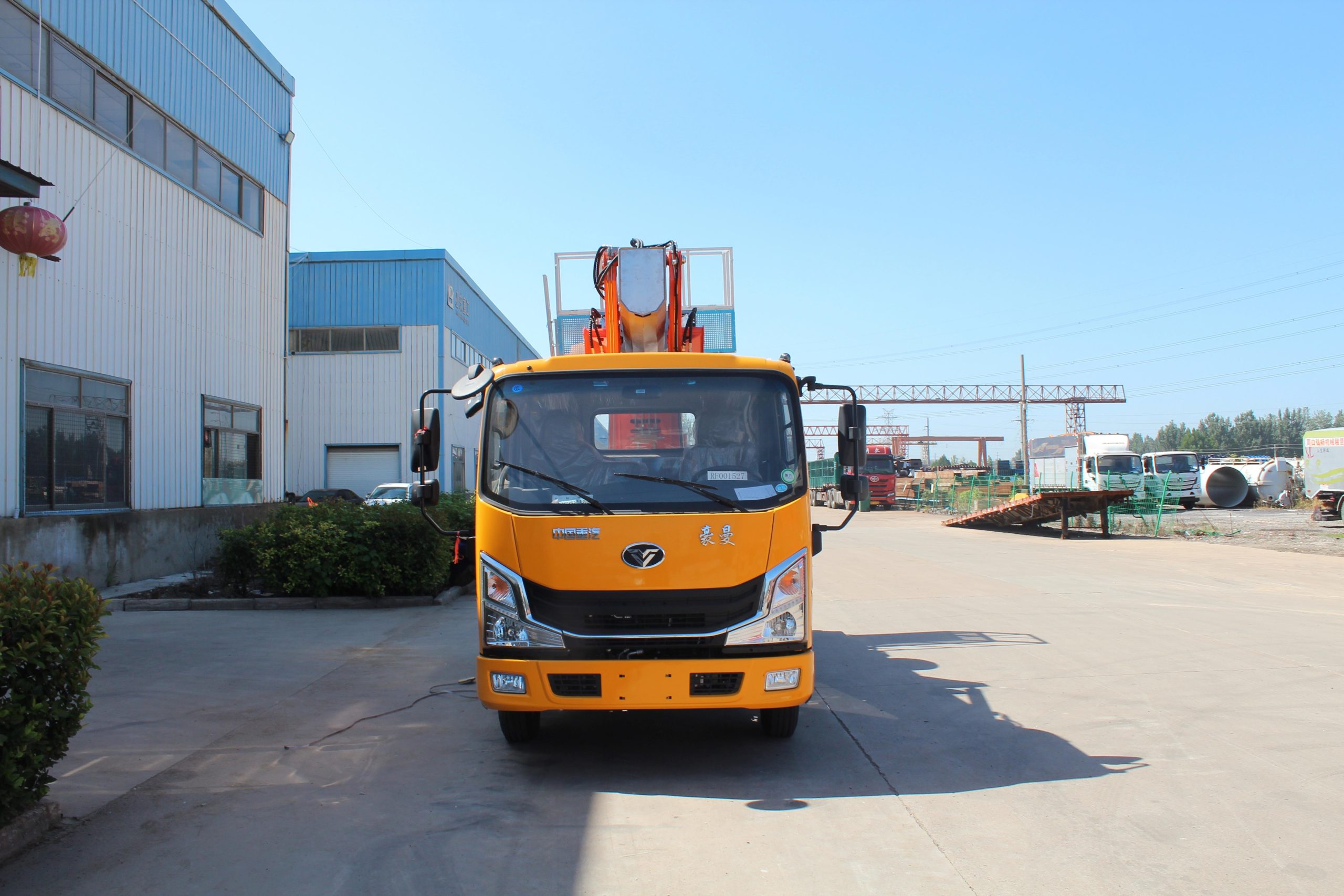

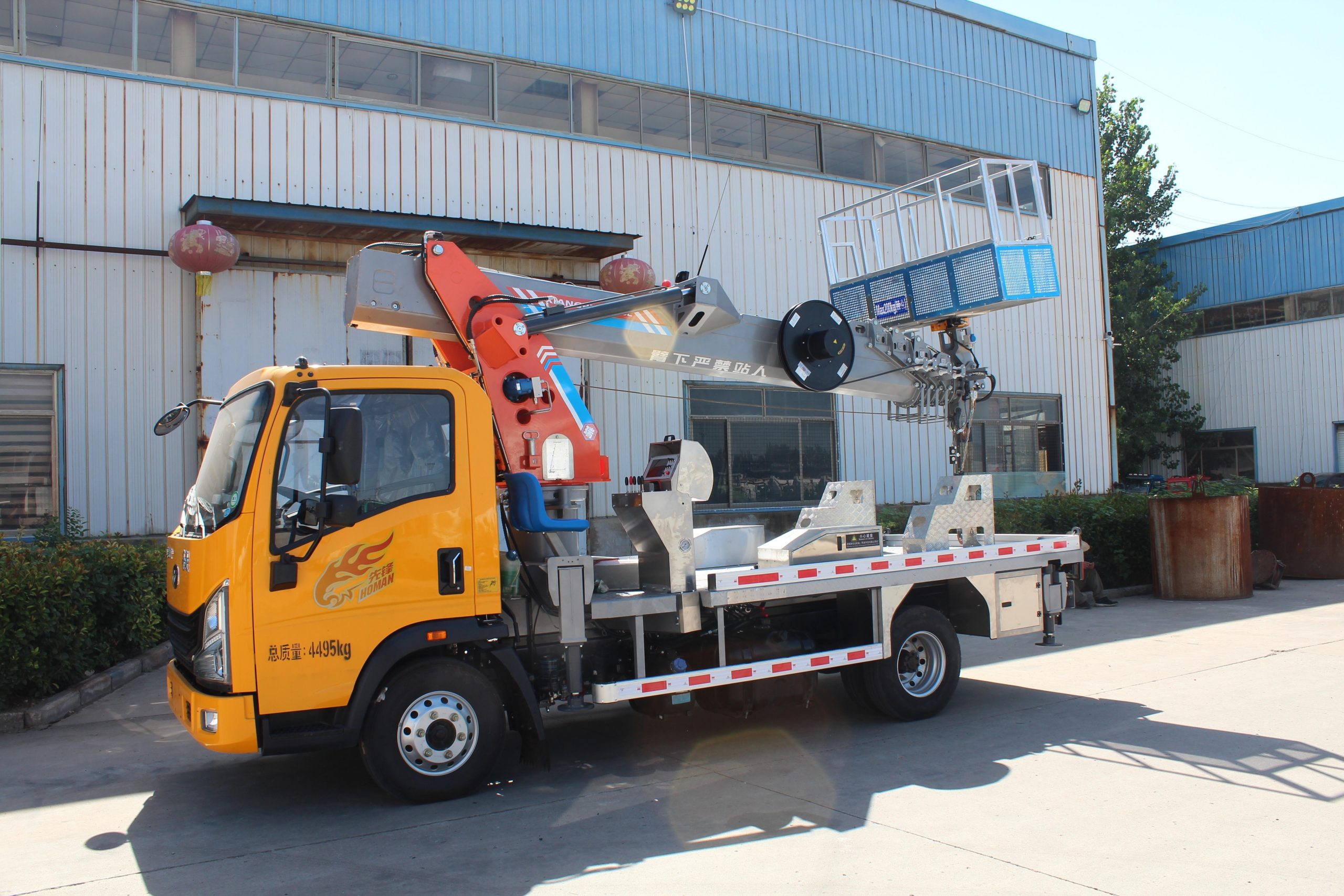

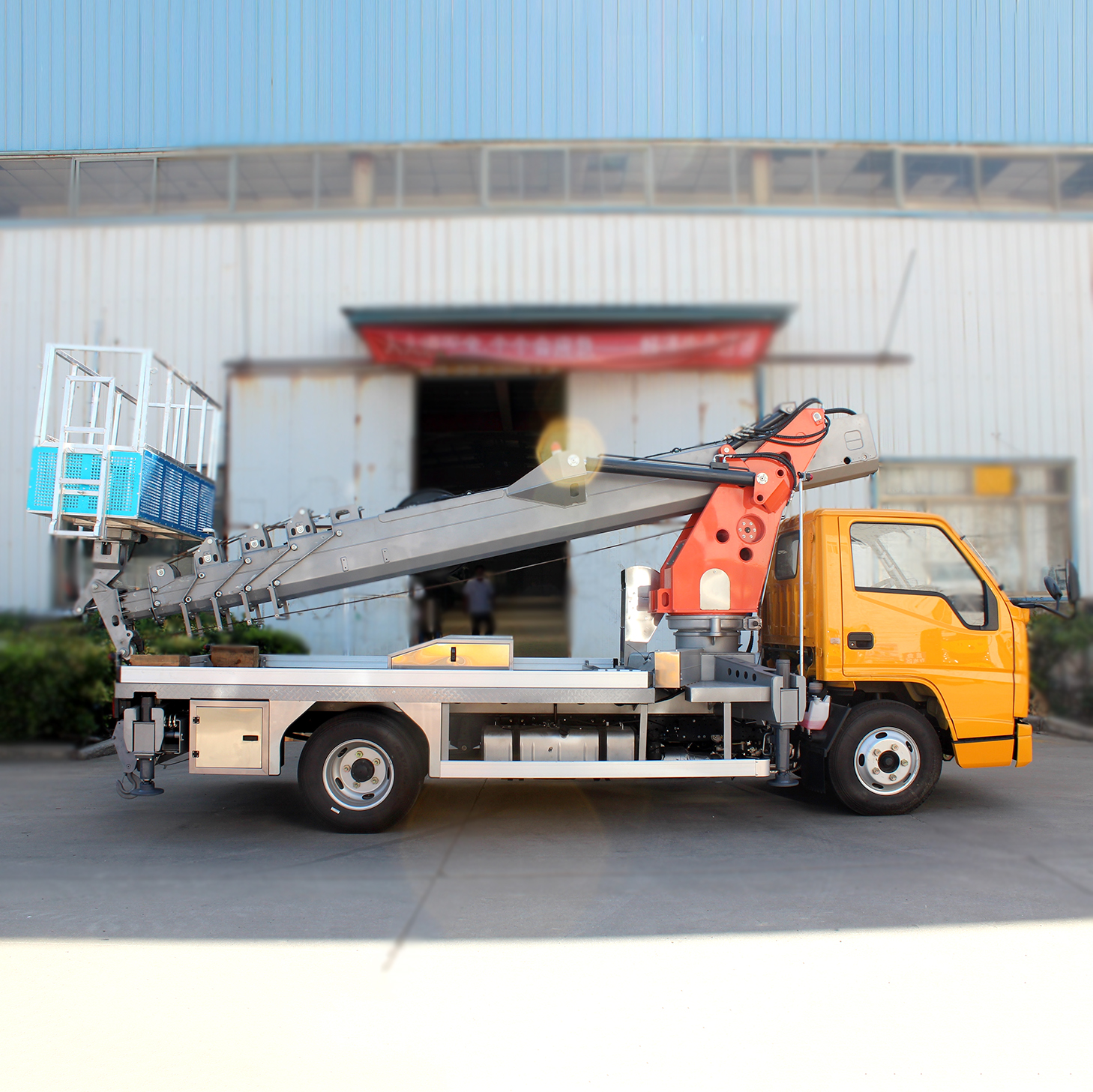

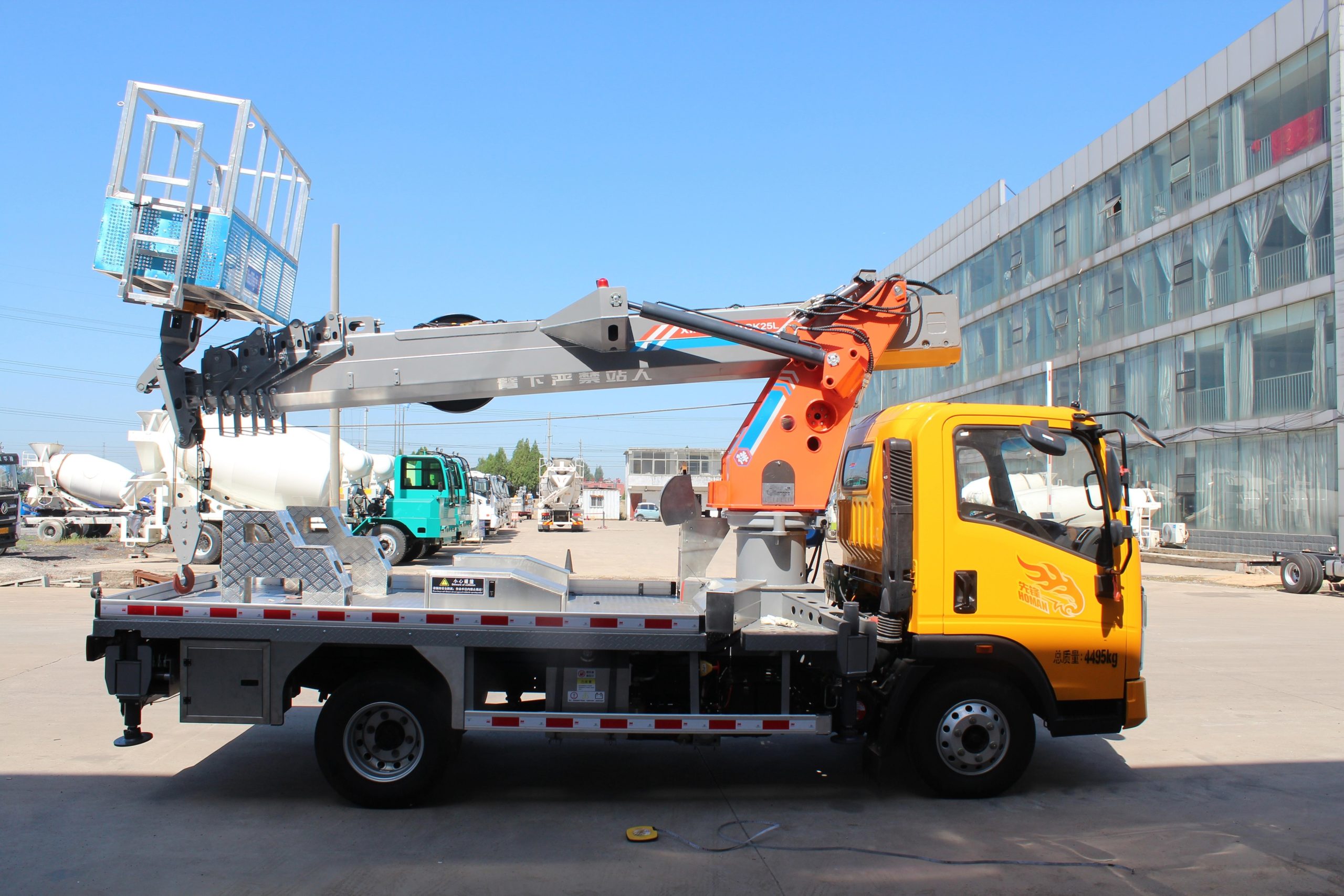

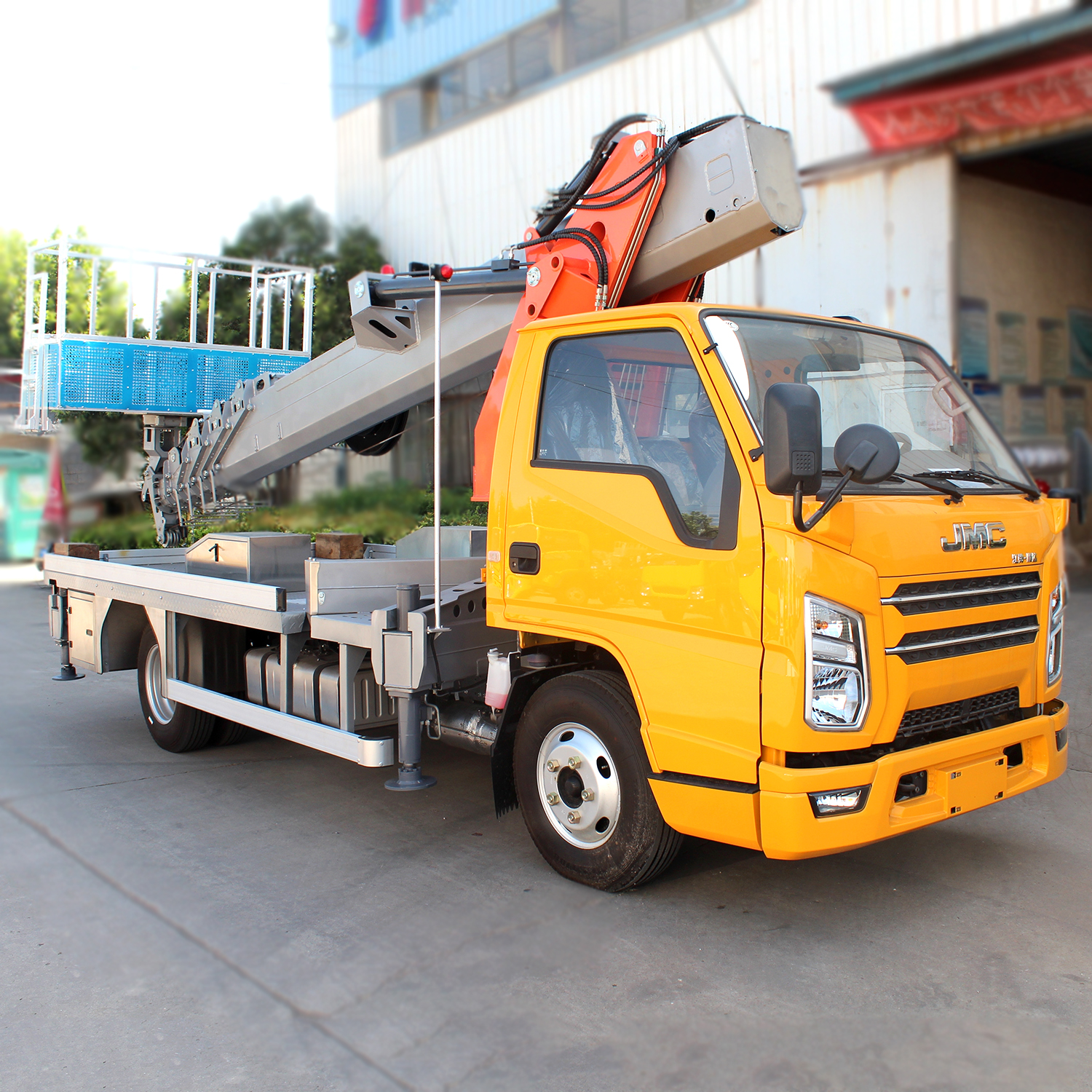

25m Jiangling Shunda / Sinotruk Howo Aerial Work Vehicle

Wenyao Series (20-meter multifunctional) — Wenyao 1st Generation (Jiangling), Wenyao 2nd Generation (HOWO).

Wenyao — a mythological auspicious creature from ancient China. According to the Classic of Mountains and Seas, the Wenyao’s call sounds like a phoenix’s cry, symbolizing good fortune and is also a sign of a bountiful year with full granaries.

Chassis
Jiangling Shunda / Sinotruk Howo
Brake type Brake type
Body dimensions 5995*2060*3050
Number of front tires 2
Number of rear tires 4
Front/rear overhang 1075/1810
Wheelbase 2800
Gross weight 4495
Cab 2/3 people
Temperature control AC with heating and cooling
Slewing support Ma’anshan
Emission standard China VI
Maximum speed 100 Km/h
Boom type Six-section polygonal boom
Rated load of work platform 200Kg
Maximum working height 20m
Hydraulic motor 1
Slew of turntable 360 degrees
Maximum working outreach 9m

Outrigger spread (length/width) 3370/4030mm
Telescopic extension 1
Basket dimensions 1800*700*1100
Main boom Shanghai Baogang BS960E
Boom tilt angle -10-78° (relative to horizontal)
Outriggers
type H, horizontal 1 section, vertical 1 section

Approach/departure angle 19/15°
Hydraulic lock 4 outriggers with two-way hydraulic locks
Leveling type Hydrostatic automatic leveling
Control system CAN bus control system
Operation mode
Wireless/remote/electric with manual emergency operation
